Quick Summary
- Excess water flow shut-off valve; Operates automatically.
- Helps to prevent or minimize water damage from a malfunctioning appliance by shutting off the water flow if its volume becomes excessive.
- WB-26 model is for high volume applications, up to 26 gallons per continuous water flow cycle.
- Ideal uses include: Houses, condos, apartments, campers, green houses, utility rooms, offices, kitchen areas, or any water line application that would not exceed 26 gallons per use during normal operation.

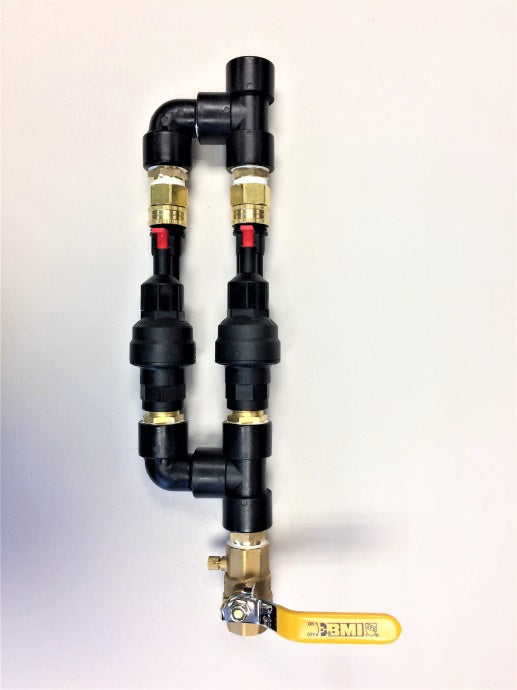

- Materials Include: (2) Waterblock excess flow valves, brass ball valve, quick disconnect garden hose fittings, polypropylene pipe fittings, flow adjustment key, reset modules
Technical Details
- Water Flow Rates: minimum of 1 GPM; maximum of 15 GPM
- Water Volume Rates: between 2 and 26 gallons
- End Connections: Female Thread; 3/4” inlet x 1/2” outlet
- Length: 14” without reset, 16” with reset. Weight: 2 lbs.
- Expected Life: Approximately 160,000 gallons total water volume before replacement.
- WaterBlock is not a whole house shutoff valve. Instead, you install it in the water line feeding a particular fixture or appliance.
- WaterBlock must be mounted vertically, with water flow either up or down.
